Input and Output Shaft Manufacturing
Jinhua Machinery manufactures input and output shafts for steering, gearbox, transmission, reducer and industrial power-transfer assemblies from customer drawings.
Request a Quote
Direct answer
Jinhua Machinery manufactures input and output shafts for steering, gearbox, transmission, reducer and industrial power-transfer assemblies from customer drawings. These components can combine external or internal splines, bearing journals, deep bores, shoulders, threads, grooves and heat-treated zones. Manufacturing review coordinates blank selection, forming, CNC machining, spline processing, heat treatment, grinding, plating and inspection. Confirmed precision capabilities are applied by feature and stated range, subject to the released drawing, datum system, volume and reporting requirements.
- Technical content reviewed by
- Process Engineering and Quality Engineering
- Last reviewed
- Capability basis
- Production records and internal inspection data
What Are Input and Output Shafts?
An input shaft receives torque from a motor, steering actuator, engine, clutch, coupling, or upstream transmission member. An output shaft delivers torque to the next gearset, coupling, wheel, pump, steering element, or driven assembly. Both are designed around their interfaces, bearing support, torque path, speed, alignment, lubrication, assembly method and service environment.
Input and output shafts can include external or internal splines, gear teeth, bearing journals, deep bores, shoulders, tapers, threads, keyways, cross holes, seal surfaces, retaining-ring grooves, flats and localized hardened areas. Hollow designs may reduce mass or support an internal interface, while forged or cold-formed blanks can reduce machining or improve material flow in suitable volumes.
Jinhua Machinery manufactures these shafts to customer-approved drawings rather than as off-the-shelf replacements. Buyers can also review gear shafts, spline shafts, steering shafts, forged shafts, and the complete shaft family hub.
Input and Output Shaft Manufacturing
Manufacturing review starts with controlled drawings, available models, standard editions, material condition, prototype quantity, annual demand, program life and required validation. The team identifies functional datums, torque-bearing interfaces, bearing and sealing surfaces, deep-hole requirements, critical shoulders, heat-treated zones, finishing allowance, balance or runout needs, and inspection access.
Starting forms can include bar, tube, cold-formed blanks or hot-forged blanks. A route may combine sawing, facing, center preparation, forming, CNC turning, milling, drilling, deep-hole drilling, spline rolling, hobbing or shaping, threading, heat treatment, straightening where approved, cylindrical grinding, bore finishing, deburring, cleaning, plating, marking and final inspection. Not every shaft requires every process.
Sequence is important when one component combines a deep bore, external spline, bearing journal and heat-treated area. Material allowance, datum transfer and fixture strategy must account for forming variation and thermal distortion. Where gear teeth are integrated, tooth datums and shaft datums are reviewed together; see Gear Shaft Manufacturing.
The RFQ should include 2D and available 3D files, material and standard, prototype and annual quantities, critical tolerances, heat treatment, surface protection, mating interfaces, inspection reports, marking, packaging, destination and delivery timing. Jinhua Machinery proposes a route only after these requirements are reviewed.
Input and Output Shaft Materials
Input and output shafts commonly use carbon, alloy and case-hardening steels selected for torque, fatigue, impact, wear, hardenability and forming route. General designs may use Chinese grades 20, 35 or 45 and SAE 1020, 1035 or 1045. Higher-strength or through-hardened designs may use 40Cr, 42CrMo, SAE 4140, SAE 4340 or a customer-specific alloy with controlled mechanical properties.
Carburized splines or gear features may use 16MnCr5, 20MnCr5, 20CrMnTi, 20CrNiMo, SAE 8620 or another approved low-carbon alloy. Cold-forming grades and delivery conditions must be evaluated for chemistry, cleanliness, annealing or spheroidization, reduction, geometry, tooling and lubrication. Stainless steels and other alloys can be reviewed for corrosion-sensitive or specialized applications, but their strength, wear, galling, machining and treatment requirements differ.
Specify exact grade, governing standard, delivery condition, hardenability band, mechanical properties, cleanliness, certification, traceability and permitted substitutions. The grades listed here are commonly reviewed examples, not a limit on the standards or materials Jinhua Machinery can evaluate.
Input and Output Shaft Heat Treatment
Input and output shaft treatments can include normalization, stress relief, quench and temper, carburizing, carbonitriding, induction hardening and nitriding. Selection depends on material, torque path, spline or gear wear, core toughness, fatigue, distortion and the surfaces that require final grinding. Surface protection such as zinc-nickel plating, phosphate or black oxide must be defined separately.
The drawing should state hardness scale and range, measurement location, case depth where applicable, core requirements, zones to mask, decarburization, permitted distortion, straightness, and post-treatment finishing. Deep bores, thin walls, abrupt sections and asymmetric features can increase distortion risk. The process route therefore reserves material and establishes datums according to the treatment sequence.
Identify required material certificates, furnace or batch records, hardness maps, microstructure, case-depth reports, mechanical tests, coating reports and traceability. Report format, sampling and retention requirements affect quotation and inspection planning.
Input and Output Shaft Tolerance
Input and output shaft tolerance is defined by the relationship between torque-transfer features and assembly datums. Important controls may include journal and bore size, roundness, cylindricity, straightness, concentricity, total runout, shoulder spacing, face runout, spline or gear fit, thread position, keyway location, roughness and the alignment of deep internal features.
Within the confirmed reference range and subject to drawing review, ground outside diameters up to 50 mm and effective lengths up to 300 mm can achieve a 0.005 mm total tolerance band, 0.003 mm roundness, 0.005 mm cylindricity, 0.005 mm straightness per 300 mm and Ra 0.2 μm. Related journal or gear-datum total runout and drawing-defined face runout can be evaluated to 0.010 mm.
Finished bores up to 30 mm diameter and L/D up to 3 can be evaluated to a 0.009 mm total tolerance band, 0.005 mm roundness, 0.008 mm cylindricity, Ra 1.0 μm and 0.010 mm coaxiality or total runout to the specified datum using fine boring or reaming. These limits apply by feature and process; they are not a blanket guarantee for every geometry.
Inspection may include diameter and bore gauges, coordinate measurement, roundness and runout equipment, roughness instruments, spline or gear measurement, hardness tests, coating checks and dedicated fixtures. See Quality Inspection & Process Control. The governing standard, datum system, measurement method, uncertainty, sampling and report fields must be agreed before production.
Input and Output Shaft Applications
Input and output shafts are used in automotive steering, transmissions, gearboxes, reducers, pumps, electric motors, construction machinery, e-bikes, motorcycles, automation and industrial equipment. An input member can prioritize coupling or spline engagement, bearing alignment and low runout. An output member may prioritize torque capacity, external spline durability, gear or flange connection and downstream assembly fit.
High-speed motor or gearbox shafts can add balance, noise and lubrication considerations. Steering shafts can add product-safety, torque, corrosion and traceability requirements. Heavy equipment can add shock load, reversing torque and contamination. Hollow shafts can introduce deep-bore alignment, wall-thickness and cleaning controls.
Provide torque, speed, duty cycle, load direction, bearing span, mating data, lubrication, environment, assembly method, service life and validation level when these affect the drawing. The application information supports manufacturing review; final system design and validation remain with the design owner.
Input and Output Shaft FAQ
What should be included in an input or output shaft RFQ?
Send the controlled drawing and available model, material, prototype and annual quantity, mating spline or gear information, critical tolerances, heat treatment, coating, inspection documents, marking, packaging, destination and timing.
Can deep bores and external splines be manufactured on one shaft?
Yes, suitable combinations can be reviewed. Bore length-to-diameter ratio, wall thickness, spline process, datum relationship, heat-treatment distortion and inspection access determine the manufacturing route and achievable control.
Can forged or cold-formed blanks be used?
Yes. Bar, tube, cold-formed and hot-forged starting forms can be evaluated according to material, geometry, strength, machining allowance, tooling, annual volume and validation requirements.
What precision can be reviewed for journals and bores?
Qualifying ground outside diameters can be evaluated to a 0.005 mm total tolerance band and Ra 0.2 μm, while qualifying finished bores can be evaluated to a 0.009 mm total tolerance band and Ra 1.0 μm. Drawing and process review is required.
Can standards not listed on this page be evaluated?
Yes. ISO, GB/T, DIN, ANSI, SAE, AGMA, customer and industry standards can be reviewed. Jinhua Machinery does not assume grade equivalence; provide the standard edition, tolerances, datums, measurement method and reporting requirements.

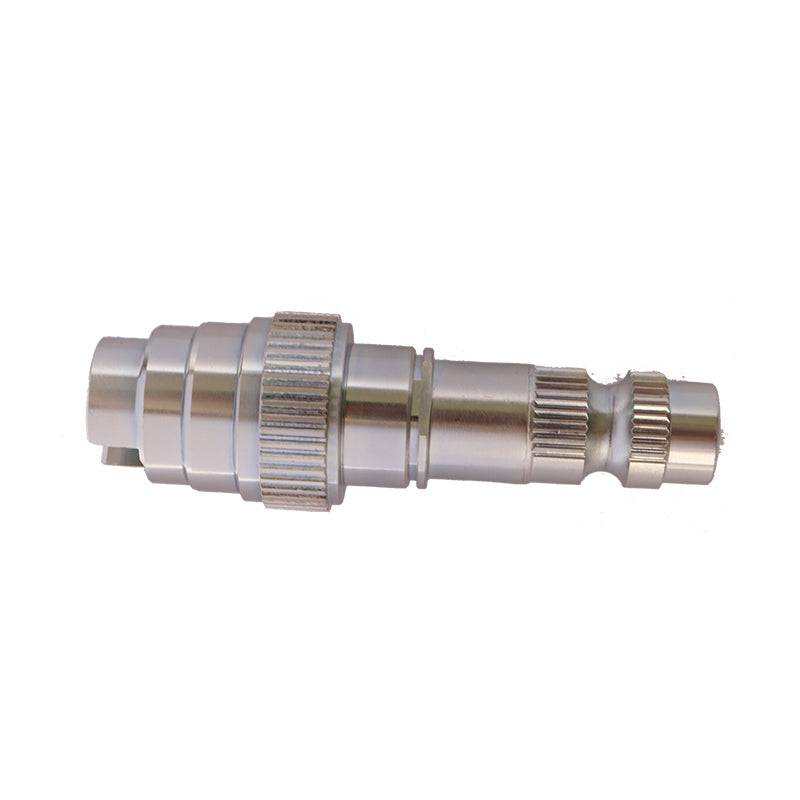

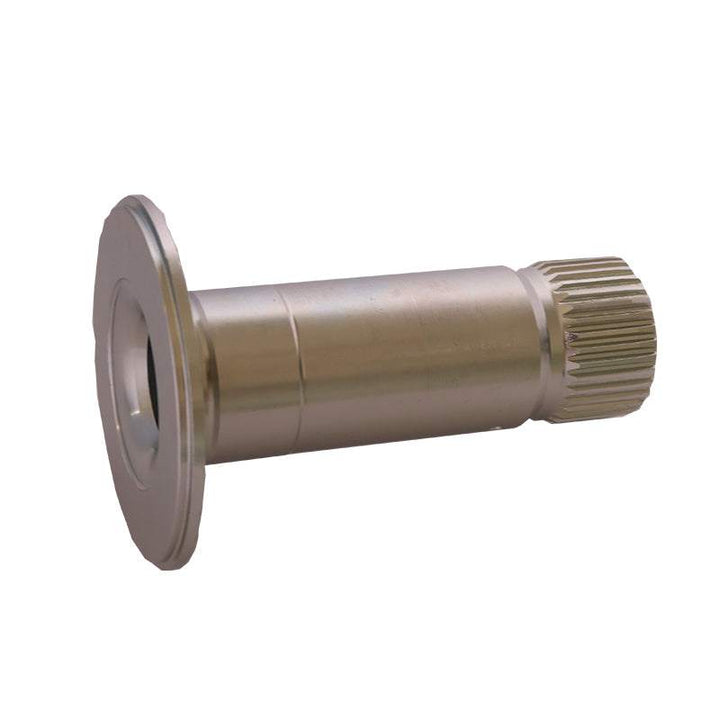

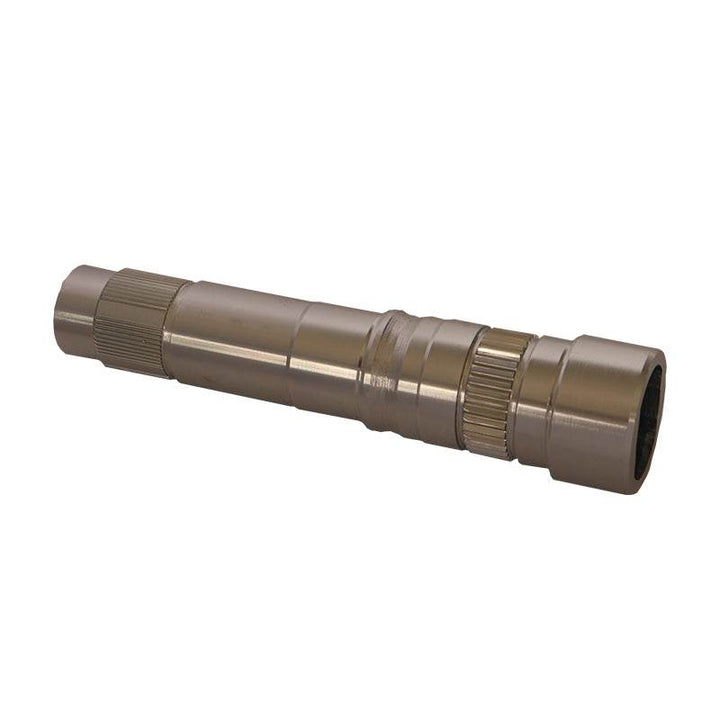

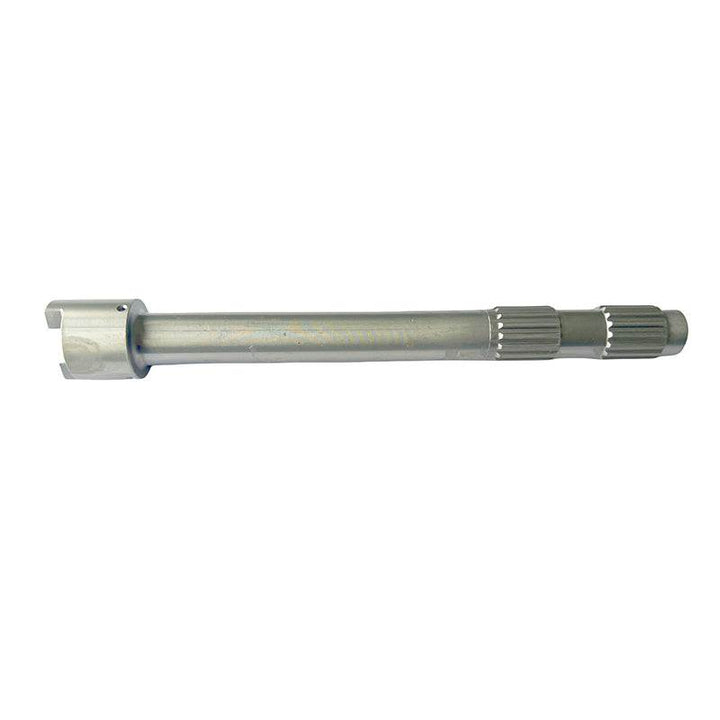

Related Manufacturing Cases
These are specific made-to-drawing examples. Their materials, processes and tolerances are component-specific and do not define a universal catalogue specification.
