Shaft Types and Manufacturing Capabilities

Jinhua Machinery organizes its made-to-drawing shaft capabilities in Changshu, China by functional shaft family. OEM buyers can compare custom, steering, input and output, forged, geared, splined, worm and pump shaft routes, then continue to the relevant capability page, manufacturing case, quality controls and RFQ review.

Request a Quote

Gear and spline features Blank and machining review Treatment requirements and finishing

Custom shaft components manufactured by Jinhua Machinery

Shaft manufacturing capabilities

Select the shaft family that matches your drawing

Each family has its own overview, materials, applications, services, manufacturing capabilities, FAQ, and quote path. This keeps buyer review focused and avoids unavailable product pages.

↗

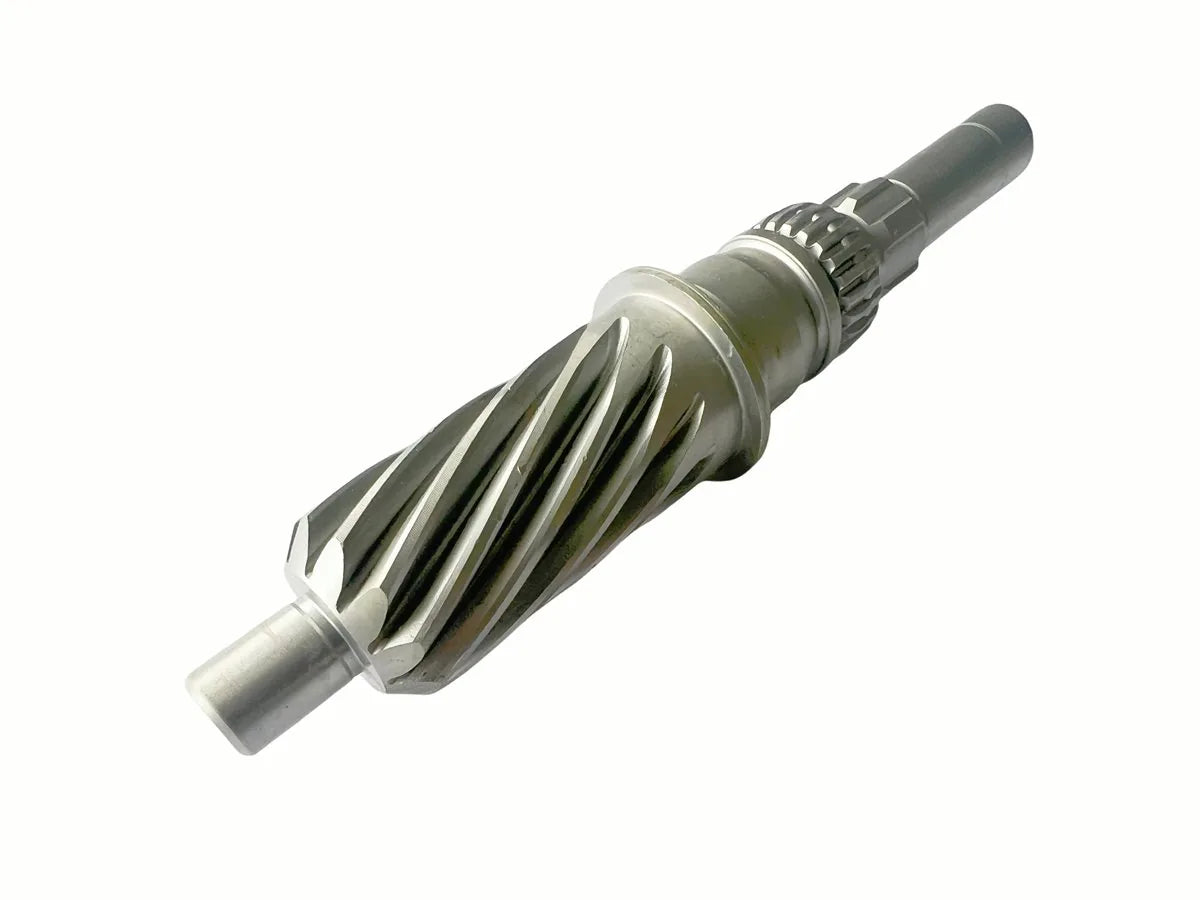

Custom Shaft Manufacturing

Drawing-based production for steering, gearbox, pump, motor, machinery, and motion-control assemblies.

View Custom Shaft Manufacturing

↗

Steering Shaft Manufacturing

Intermediate, assist, splined and related steering shafts manufactured from controlled customer drawings.

View Steering Shaft Manufacturing

↗

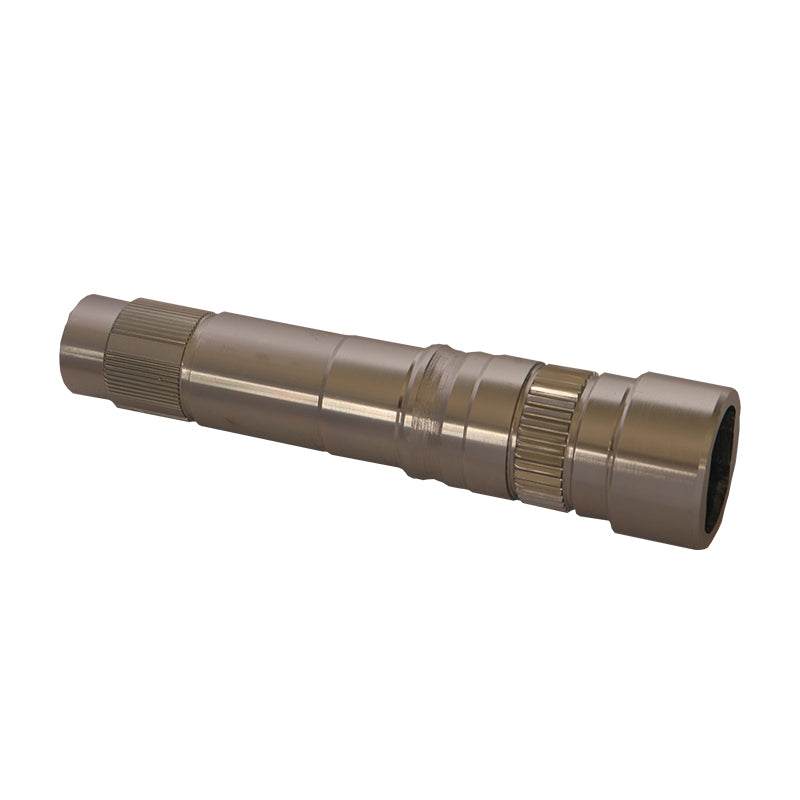

Input and output shaft manufacturing case by Jinhua Machinery

Input & Output Shaft Manufacturing

Torque-transfer shafts with splines, journals, bores and heat-treated features for steering and transmission assemblies.

View Input & Output Shaft Manufacturing

↗

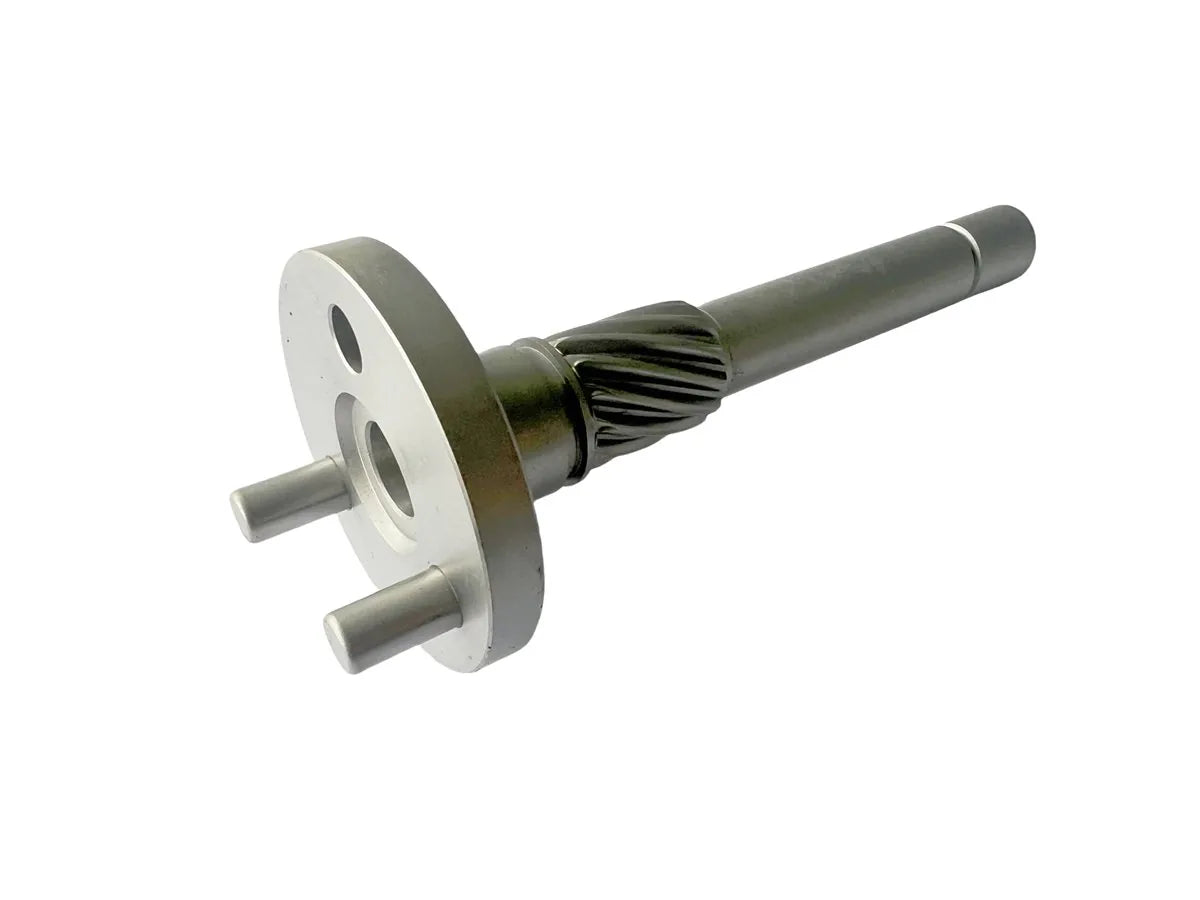

Forged shaft component sample by Jinhua Machinery

Forged Shafts

Forged blanks and machined components for high-strength automotive, machinery, and power-transfer applications.

View Forged Shafts

↗

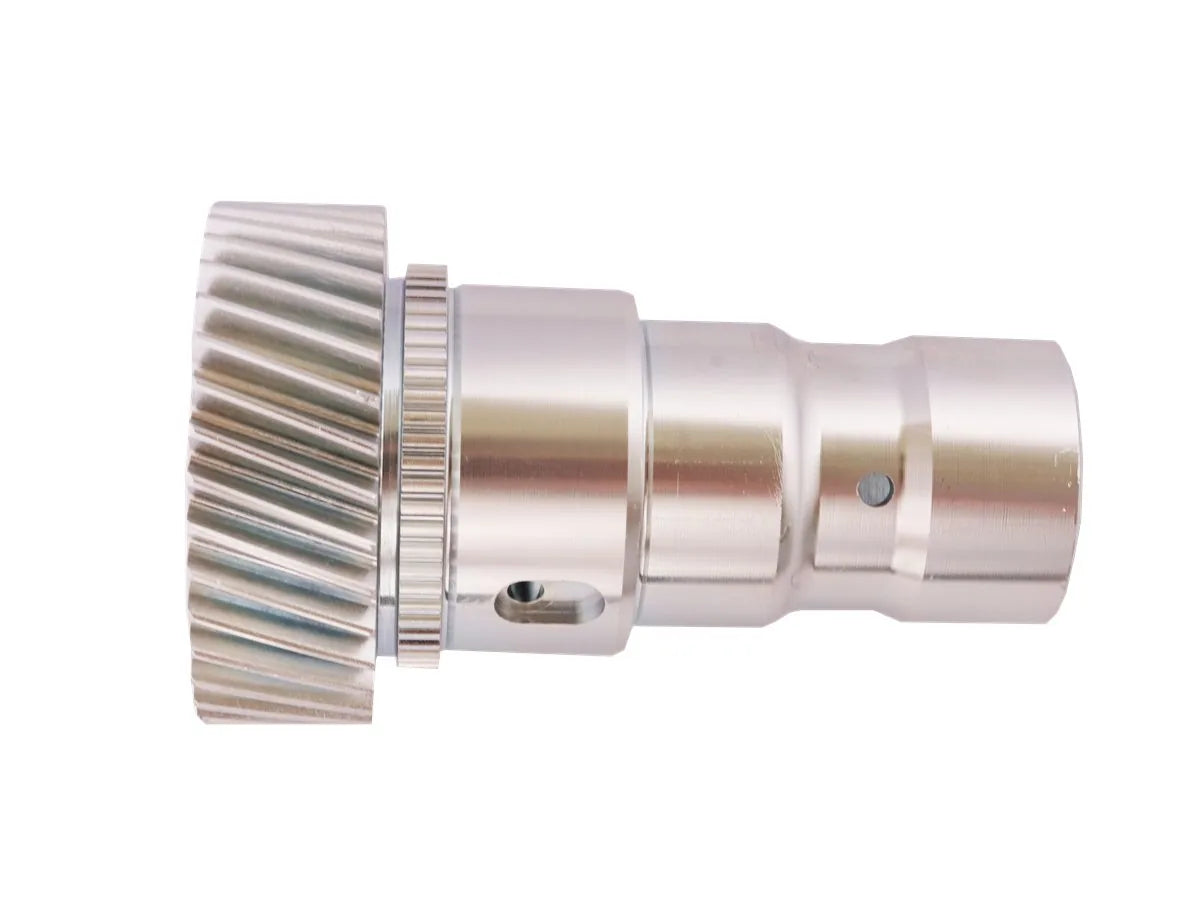

Gear shaft manufacturing sample by Jinhua Machinery

Gear Shafts

Integrated gear-and-shaft components for gearbox, transmission, steering machinery, reducers, and power-transfer assemblies.

View Gear Shafts

↗

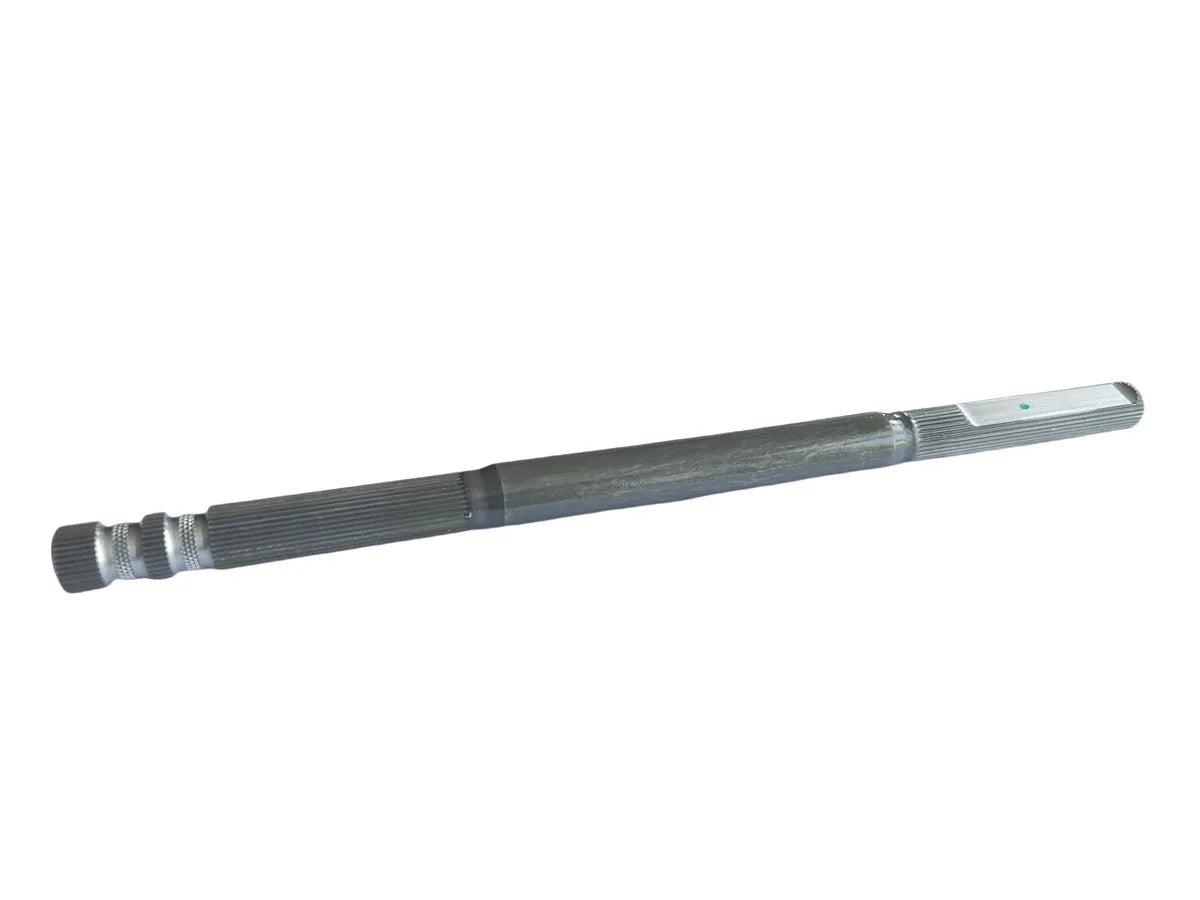

Spline shaft component sample by Jinhua Machinery

Spline Shafts

Internal and external spline features for torque transfer, positioning, and mechanical drive systems.

View Spline Shafts

↗

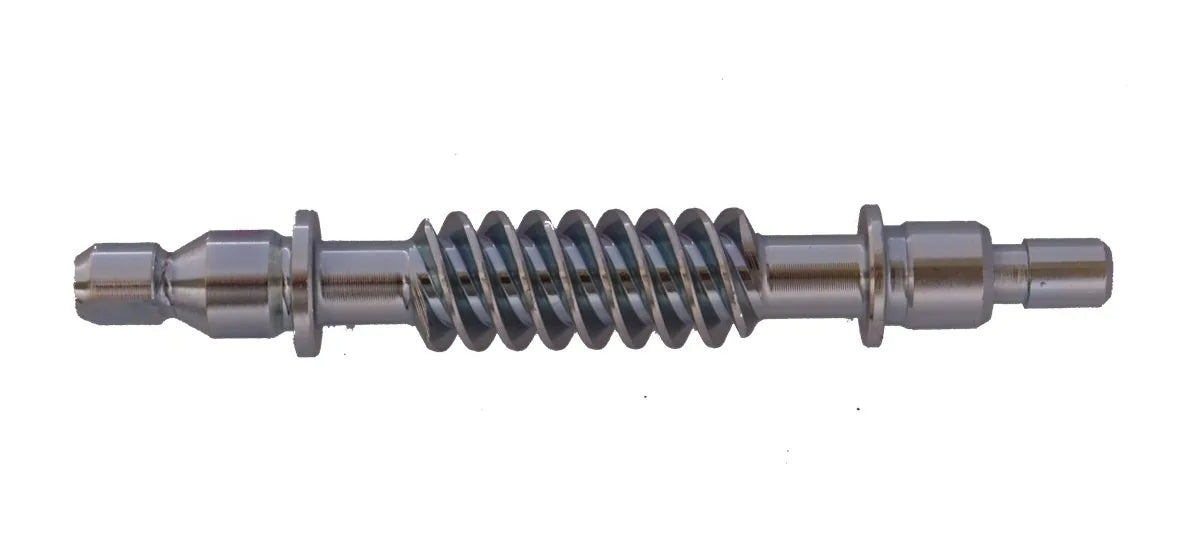

Worm shaft transmission component sample by Jinhua Machinery

Worm Shafts

Worm-drive components for steering, gearboxes, compact reducers, and motion-control assemblies.

View Worm Shafts

↗

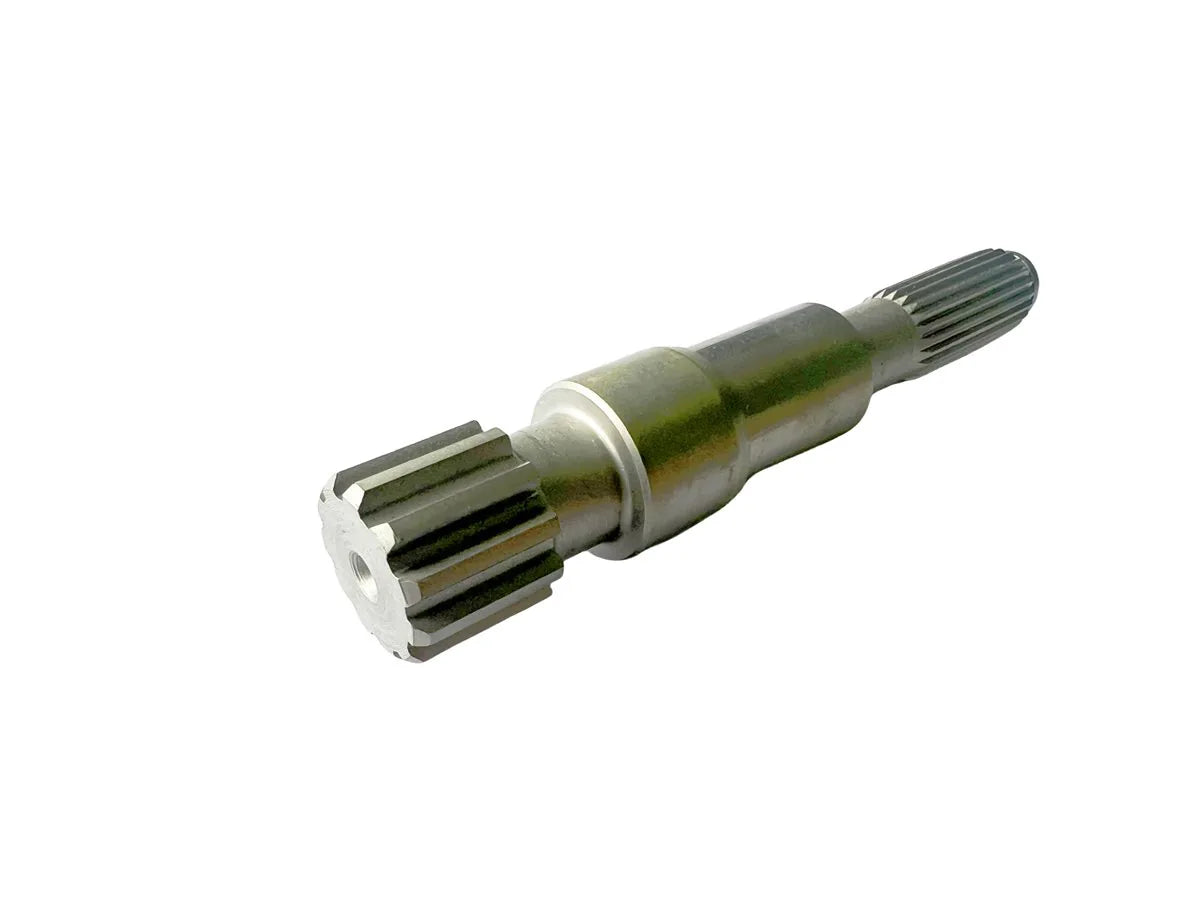

Pump shaft manufacturing sample by Jinhua Machinery

Pump Shafts

Steering-pump and industrial-pump components with turning, milling, grinding, and finishing support.

View Pump Shafts

Verified manufacturing data

Verified Precision Capabilities

Jinhua Machinery can achieve these values within the stated size and process ranges, subject to drawing review. Final applicability depends on the material, heat treatment, geometry, datum system, quantity, and inspection plan.

Precision ground outside diameters: Achievable capability: 0.005 mm total diameter tolerance; 0.003 mm roundness; 0.005 mm cylindricity; 0.005 mm straightness per 300 mm; Ra 0.2 μm; Reference scope and process: Outside diameter up to 50 mm and effective cylindrical grinding length up to 300 mm
Datum relationships and faces: Achievable capability: 0.010 mm total runout; 0.010 mm perpendicularity or face runout when defined by the drawing; Reference scope and process: Applies to reviewed relationships between ground journals, tooth datums, shoulders, and functional faces
Precision bores: Achievable capability: 0.009 mm total bore tolerance; 0.005 mm roundness; 0.008 mm cylindricity; 0.010 mm coaxiality or total runout; Ra 1.0 μm; Reference scope and process: Bore diameter up to 30 mm and L/D up to 3 using precision boring or reaming

The standards named on this page describe confirmed reference conditions for the stated capability. Jinhua Machinery can also evaluate drawings based on other ISO, GB/T, DIN, AGMA, ANSI, SAE, customer-specific, or industry-specific standards. Grade numbers in different standards are not assumed to be equivalent; the governing edition, tolerance definitions, measurement method, datum system, and reporting requirements must be reviewed before quotation.

Can you manufacture shaft components from drawings?

Yes. Jinhua Machinery reviews customer drawings, samples, material requirements, tolerance targets, heat treatment needs, and surface finishing requirements before quoting.

Which component families can you support?

We support custom, forged, geared, splined, worm and pump designs, plus steering, input, output and assist components, pinions, bushings, hubs, collars, and related transmission parts.

Can you support forging and machining together?

For suitable shaft parts, forged blanks can be reviewed together with CNC machining, grinding, heat-treatment requirements, surface treatment and inspection. Provider responsibilities and required records are confirmed during quotation.

What should I send for a quote?

Please send the drawing and revision, material, critical dimensions and tolerances, surface and heat-treatment requirements, annual usage, batch volume, inspection or PPAP documents, packaging and delivery target.

Request a quote

Send drawings. Get a shaft manufacturing review.

Send the drawing and revision, material, critical dimensions and tolerances, surface and heat-treatment requirements, annual usage, batch volume, inspection or PPAP documents, packaging and delivery target. Use the Precision Shaft RFQ Checklist to prepare the package.
