Jinhua Machinery evaluates drawing-based components that use hot-forged blanks and require downstream datum machining, CNC finishing, grinding, inspection, traceability, cleaning, and packaging. The hot-forging source, quench-and-temper responsibility, and any later heat-treatment provider are confirmed during quotation; this page does not represent those unresolved operations as universal in-house capability. Review covers material, blank envelope, machining allowance, datum recovery, heat-treatment movement, critical surfaces, annual demand, batch size, certificates, and inspection records. Tooth or spline operations are selected only when specified by released drawings.

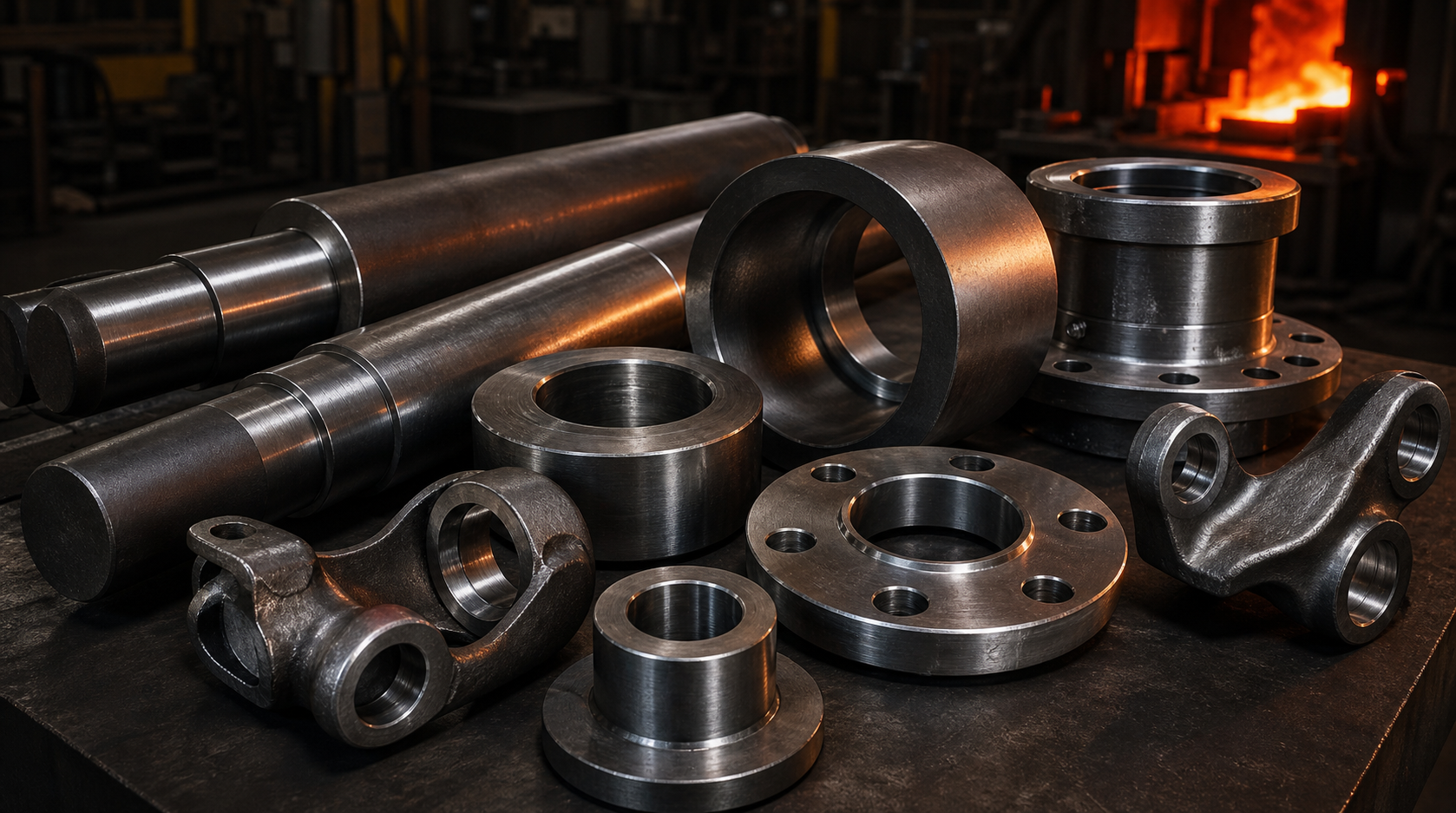

A hot-forged machined component begins with a formed blank produced to an approved material and blank specification. Jinhua reviews the responsible blank source and any heat-treatment provider, then plans its verified downstream contribution around datum preparation, bore and outside-diameter finishing, applicable tooth or spline operations, grinding, traceability marking, cleaning, packaging, and inspection.
Hot forging is evaluated for parts whose geometry, section size, strength requirement, material flow, or blank economics favor heated forming. Selection still depends on the released drawing, steel grade, heat treatment, machining stock, distortion risk, quantity, and required inspection.
A hot-forged blank can be evaluated when a part needs larger deformation, thicker sections, a complex load-bearing blank, or a material and geometry less suitable for cold forming. Jinhua confirms the blank source and heat-treatment responsibility during quotation, then reviews whether controlled stock remains on bores, journals, faces, shoulders, splines, and gear features for downstream finishing.
This sequence describes how a project using a hot-forged blank may be reviewed. The responsible forging and heat-treatment providers, exact operations, and inspection records must be confirmed for each quotation.
Commonly evaluated hot-forging steels include Chinese 20, 25, 35, 45, 40Cr, and 42CrMo, together with SAE 1020, 1025, 1035, 1045, 4140, and 5140. Selection depends on the governing standard, section size, hardenability, mechanical properties, heat treatment, cleanliness, delivery condition, and certification.
Hot-forged stock is reviewed around bores, journals, faces, splines, and gear features so scale, blank variation, and heat-treatment movement can be removed during datum and finish machining. Datum selection, wall thickness, clamping access, straightening needs, drawing-specified treatment areas, and grinding stock are considered before a finished tolerance is committed. The blank source and special-process responsibility are confirmed per quotation.
The process plan identifies responsibility for forging, quench and temper, machining, tooth or spline operations, grinding, and any drawing-specific special process. Inspection planning can include material and supplier records, bulk hardness, dimensional checks after heat treatment and finish machining, runout, surface finish, tooth or spline requirements, QR-code traceability, cleaning, and packaging records.
Hot-forged component programs are reviewed around the approved blank source, formed geometry, machining stock, heat-treatment responsibility, surface quality, inspection records, and downstream production consistency.
We review whether the proposed hot-forged blank fits the geometry, material grade, strength target, annual demand, and machining allowance, and confirm process responsibility during quotation.
Turning, milling, drilling, boring, grinding, thread, groove, shoulder, and bearing-seat features can be planned after forged blank preparation.
Quench and temper, local induction hardening, carburizing, or another drawing-specific treatment is included only when specified; the responsible provider and required records are confirmed per quotation.
Critical dimensions, hardness, runout, surface finish, fit requirements, and packing expectations are considered before repeatable production.
These cases document component-specific materials, routes, and drawing controls. They are manufacturing evidence, not universal specifications for a new inquiry.
A forged blank followed by datum machining, bore and outside-diameter finishing, rough hobbing, local induction hardening, finish hobbing, grinding, traceability marking, cleaning, and packaging.
View manufacturing caseA separate hot-forged gear-shaft case using a drawing-specific alloy-steel, machining, gear-processing, carburizing, hardness, case-depth, and gear-quality route.
View manufacturing caseThese values can be achieved within the stated feature sizes and process ranges, subject to drawing review. Final applicability depends on material, heat treatment, geometry, datum access, stock allowance, quantity, and the inspection plan.
Up to 50 mm diameter and 300 mm effective grinding length: 0.005 mm total diameter tolerance, 0.003 mm roundness, 0.005 mm cylindricity, 0.005 mm straightness per 300 mm, and Ra 0.2 µm.
Up to 30 mm bore diameter and L/D up to 3 using precision boring or reaming: 0.009 mm total bore tolerance, 0.005 mm roundness, 0.008 mm cylindricity, and Ra 1.0 µm.
Related journal or tooth-datum total runout, bore-to-OD coaxiality or total runout, and face perpendicularity or face runout can achieve 0.010 mm when defined by the reviewed drawing.
The standards listed on related pages describe confirmed reference conditions, not an exclusive standards list. Other ISO, GB/T, DIN, AGMA, ANSI, SAE, customer-specific, or industry-specific standards can be evaluated. Equivalent grade numbers are not assumed to be interchangeable.
A hot-forged blank can be evaluated when the geometry, section size, material, load path, or quantity makes near-shape forming more appropriate than removing the complete profile from solid stock. The economic and technical benefit depends on tooling, forging allowance, annual demand, heat treatment, and finish-machining requirements.
If the drawing specifies quench and temper, the responsible provider, sequence, certificates, hardness requirements, and return-inspection records are confirmed during quotation. This page does not present that unresolved operation as universal in-house capability.
The process review assigns stock to critical bores, journals, faces, shoulders, splines, and gear features, then considers forged-blank variation, scale, heat-treatment movement, clamping access, straightening needs, and grinding stock before finished tolerances are committed.
Yes, when required by the released drawing. Gear shaping, hobbing, knurling, spline rolling, and related finishing operations are selected by geometry, material condition, heat treatment, accuracy requirement, datum system, and inspection method.
Send the released drawing and available 3D model, revision, material and standard, prototype and annual quantity, bulk and local heat treatment, critical datums and tolerances, tooth or spline requirements, inspection records, marking, packaging, and delivery target.
Where a project proposes a customer-supplied blank or another sourcing arrangement, confirm the proposed source, blank specification, acceptance criteria, and responsibility for each stage before quotation. Identify who supplies the forging, who performs subsequent machining, and how a blank discrepancy will be handled. Do not assume a sourcing arrangement or an in-house hot-forging operation from the finished-part drawing alone.
Use the applicable blank drawing or agreed blank specification to define incoming acceptance, and the released finished-part drawing to define final machining acceptance. Identify machining stock, datum features, and any surfaces left in the forged condition. Keep the corresponding requirements and inspection records distinct so that acceptance of a blank is not treated as acceptance of the finished component.
Identify the proposed source or treatment change and review its effect on the agreed machining route before a repeat order proceeds. Compare the applicable specifications and available material or treatment records, then review machining stock, locating features, and inspection requirements. A familiar finished-part drawing does not by itself establish that a changed blank or treatment route is interchangeable.
Include material, quantity, tolerance, heat treatment, finishing, and application requirements when available.
