Explore indexed 4-axis machining, fixture access and datum transfer through documented aluminum component cases. Send drawings for route review.
The reference ranges for indexed machining follow the shaft-component ranges:
Part orientation, fixture clearance and clamping surfaces are reviewed for the actual drawing. The route remains indexed machining, with the required feature relationships and inspection method agreed for the component.
Consider indexed 4-axis machining when an irregular component needs cutter access to features on several faces or orientations. Review the drawing, locating scheme, fixture clearance and available machining allowance together before choosing the route.
The decision concerns access at planned positions, not a promise of simultaneous rotary cutting or elimination of every second setup. Some features may still need a separate fixture; suitability depends on the actual geometry and datum relationships.
The quotation scope depends on the locating and clamping arrangement, cutter access at each orientation, setup transfers and the condition of the starting blank. Quantity and inspection reporting requirements should be reviewed alongside the proposed machining operations.
Separate any blank-supply scope from subsequent machining when comparing offers. Fixture preparation, incoming-blank review and finished-part acceptance should be identified rather than hidden in an assumed all-inclusive route.
Agree the provider responsibility and incoming condition for the blank before confirming the machining scope. Known allowance differences, suspected porosity, thin-wall concerns or other starting-form issues need component-specific review; machining should not be assumed to correct every blank defect.
Finished-part acceptance should refer to the controlled drawing, datum relationships and agreed inspection records after the required setups. A programmed orientation or fixture plan explains the route, not a measured conformity result.
The documented route separates OP-010 turning from two 4-axis machining setups, OP-020 and OP-030. It preserves the distinction between the externally supplied casting and subsequent machining.
Read the complex casting machining caseOP10 and OP20 are separate production operations with documented indexing positions and datum-transfer logic. Indexing positions describe process orientation, not measured angular conformity.
Read the irregular casting machining caseMaterial identity, casting revision and provider responsibility remain specific to the released component documentation. This page does not resolve an unconfirmed material grade or introduce measured GD&T results.

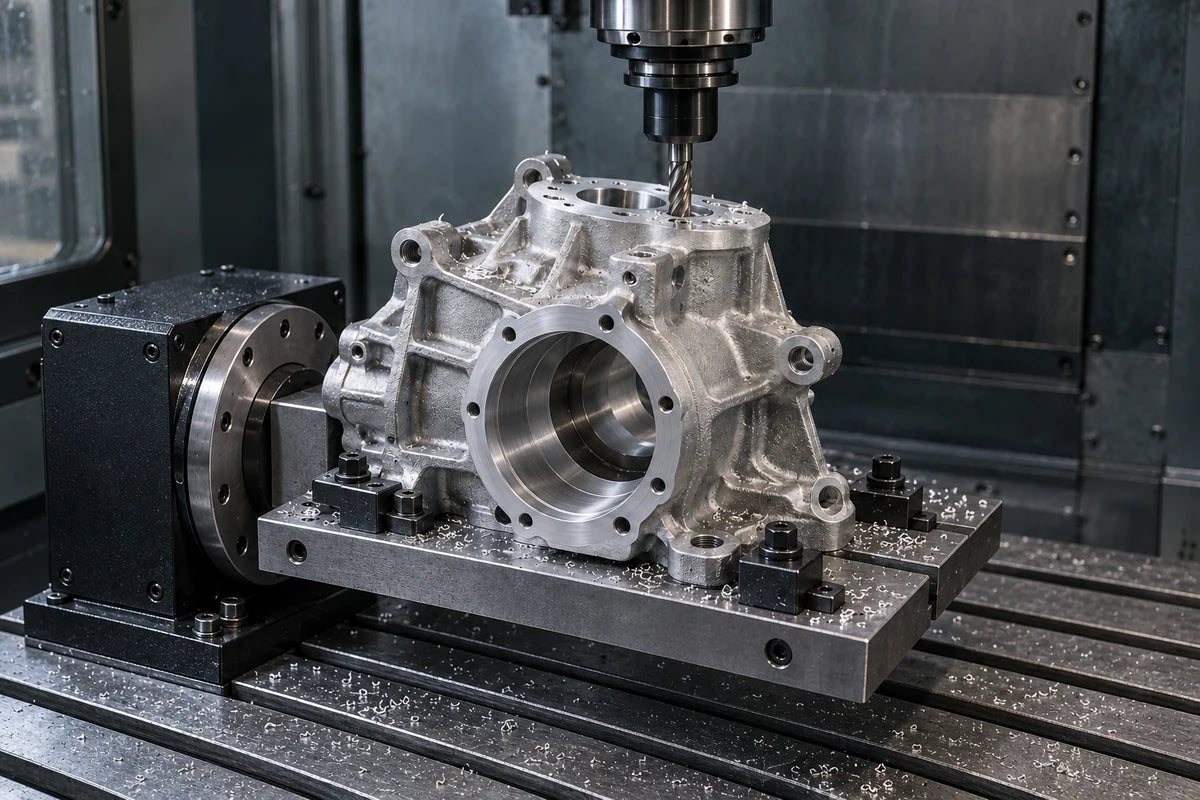

Indexed 4-axis machining adds a rotary positioning axis to the linear machine movements. The fixture presents another orientation to the cutter, after which the planned features are machined at that position.
This page concerns indexed access, not a promise of simultaneous rotary cutting or additional-axis equipment. The choice of orientation follows the feature geometry and tool access. A process position is a machining instruction, not a measured angular-accuracy result.
Irregular castings need a deliberate locating scheme. Review the starting form, available stock, contact surfaces and clamp positions before assigning operations. A fixture should support the part without obstructing the cutter or relying on an unconfirmed surface as a finished datum.
When the component is moved to a second fixture, record which machined bores or faces establish the new reference. Distinguish casting-location requirements from finished-feature requirements. Rotation does not eliminate the need to assess datum transfer or justify a claim that every face shares one setup.
Consider tool reach, holder clearance and clamp clearance through the planned indexing positions. A face that is accessible at one position may be obstructed at another. Check access for the complete operation rather than only the visible cutter tip.
Chip removal should be reviewed for pockets and bores in each orientation. Stock interruptions and local differences in casting allowance also belong in the cutting plan. Clean and protect locating contacts before transferring the part to another fixture; do not infer the route from a photograph.
Map reference faces, bores and angled features to the specified datum system. The inspection plan should identify how the finished part is aligned, which relationships are measured and what records support acceptance.
A listed indexing position explains process intent. It does not establish that an angular relationship, bore position or geometric tolerance passed inspection. The documented cases preserve this distinction and do not resolve a disputed material grade or introduce unrecorded achieved results.
Include both where available, identifying their revisions and relationship. The blank information supports locating and allowance review, while the finished drawing defines the features and requirements to be accepted.
Confirm whether that arrangement is suitable for the component, the incoming condition and who evaluates blank-related discrepancies. Supplying a blank does not by itself establish an agreed machining or defect-disposition scope.
Mark the protected surfaces on the controlled drawing or an agreed supplementary view. Distinguish functional, sealing and appearance requirements so fixture access and contact locations can be assessed before the route is agreed.
Provide the available blank specification and any known allowance or geometry differences. Agree which conditions require clarification or review before machining; do not assume a finished-part drawing resolves incoming casting variation.
Identify the specified relationships between faces, bores and other features made in different setups. Agree the datum alignment and reporting scope for the finished component rather than using the indexing instruction as acceptance evidence.
No. A route position describes how the component is oriented for machining. It is not evidence that a finished angular relationship was measured and accepted.
No. Fixture access, geometry, material, starting form and inspection requirements must be reviewed for the actual drawing.
