Machined forging from drawings

Machined Forging Components

Jinhua Machinery supports machined forgings and forged-parts machining from customer-approved drawings in Changshu, Jiangsu, China. Its verified in-house contribution centers on CNC turning, milling, grinding, dimensional inspection, traceability, and final part control. A reviewed project route may begin with a hot-forged, cold-forged, or cold-extruded blank and may include drawing-specified heat treatment, but the responsible blank source and special-process provider are confirmed for each quotation rather than represented as universal in-house capability. Before release, Jinhua reviews blank condition, material, machining allowance, functional datums, heat-treatment movement, critical tolerances, inspection records, annual quantity, and batch size.

Request a Quote

Forged-blank and source review In-house precision machining Grinding and inspection

Machined forged metal components manufactured by Jinhua Machinery

Buyer guide

What are machined forgings?

Machined forgings are components whose load-bearing blank is formed by forging and then finished by controlled machining. The forged blank can improve material use and establish favorable material flow, while machining creates the bores, journals, shoulders, faces, splines, teeth, threads, and datum relationships required by the drawing. The correct route depends on geometry, steel grade, heat treatment, functional surfaces, production quantity, and the amount of stock that must remain for post-forging finishing. Blank-to-CNC handoff guide

↗

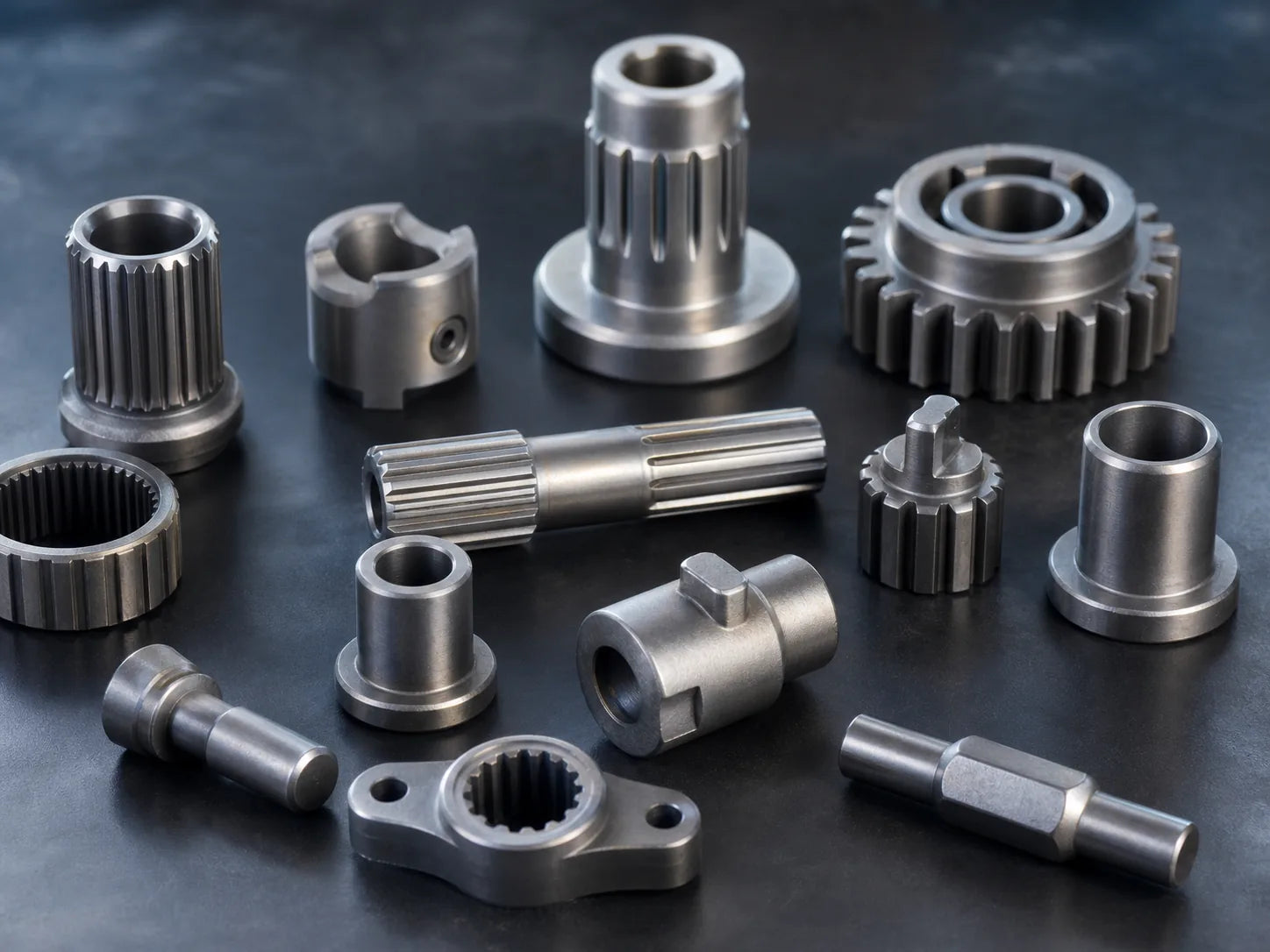

Cold forged precision metal component cluster

Cold Forging

Characteristics: Cold forging forms suitable steel near room temperature and is commonly evaluated for splines, sleeves, stepped shafts, upset sections, reduced diameters, and other repeatable near-net features.
Advantages: It can improve material utilization, reduce stock removal, support consistent formed features, and provide good blank surface quality. Suitability depends on material formability, deformation level, tooling access, geometry, annual demand, and the finishing required by the drawing.

View Cold Forging

↗

Hot forged metal blanks and machined forging components

Hot Forging

Characteristics: Hot-forged blanks are commonly evaluated where larger deformation, thicker sections, or more complex blank geometry must be considered together with material flow and later heat treatment.
Advantages: A reviewed hot-forged blank can reduce machining from solid stock and support load-bearing geometry. Jinhua confirms the responsible blank source, special-process provider, scale, variation, allowance, heat-treatment movement, quantity, and finish requirements for each quotation.

View Hot Forging

From blank to inspection

How a machined forging program is planned

1. Blank route, source, and material

The quotation reviews whether a hot-forged, cold-forged, or cold-extruded blank is appropriate for the geometry, deformation level, material flow, steel grade, mechanical properties, annual demand, and downstream machining. Jinhua confirms the blank source and process responsibility for each program. Commonly evaluated grades include Chinese 20, 25, 35, 45, 40Cr, and 42CrMo steels; SAE 1020, 1025, 1035, 1045, 4140, and 5140; and application-specific grades such as 16MnCr5 or customer-controlled specifications. The governing grade, standard edition, delivery condition, and certification must be provided.

2. Allowance, datum, and distortion control

Forging stock is assigned around functional bores, journals, faces, splines, and gear features so that scale, decarburization, parting-line variation, and heat-treatment movement can be removed without losing clean-up allowance. Datum selection is reviewed before tooling release. Where a spline is the functional reference, it can also be used to establish subsequent clamping datums. Heat-treatment condition, section changes, wall thickness, and straightening or grinding stock are considered when planning post-treatment finishing.

3. Process ownership and approved external steps

The quotation and released process plan define which operations are performed by Jinhua Machinery and whether any approved external special process is required. An external operation is not presented as an in-house capability. Applicable supplier records, return inspection, lot identification, and traceability requirements are built into the control plan before production release.

4. Post-treatment finishing and inspection

Where a drawing specifies quench and temper, carburizing, carbonitriding, induction hardening, or another special process, the responsible provider and required records are confirmed in the approved route. Functional surfaces can then proceed to applicable finish turning, bore finishing, tooth finishing, or grinding at Jinhua. Inspection is planned from drawing datums and can include dimensional checks, roundness, cylindricity, runout, perpendicularity, surface roughness, hardness, and case-depth or material records when required. See Quality Inspection.

Verified manufacturing data

Precision capabilities for finished machined forgings

These values can be achieved within the stated feature sizes and process ranges, subject to drawing review. They are not unconditional tolerances for every forged geometry, material, heat-treatment route, or quantity.

Ground outside diameters

For diameters up to 50 mm and an effective grinding length up to 300 mm: 0.005 mm total diameter tolerance, 0.003 mm roundness, 0.005 mm cylindricity, 0.005 mm straightness per 300 mm, and Ra 0.2 µm.

Precision bores

For bores up to 30 mm and L/D up to 3 using precision boring or reaming: 0.009 mm total bore tolerance, 0.005 mm roundness, 0.008 mm cylindricity, and Ra 1.0 µm.

Datum relationships

Related ground journals or tooth datums can achieve 0.010 mm total runout. Bore-to-OD coaxiality or total runout can achieve 0.010 mm within the stated bore range, subject to the drawing datum system.

Faces and shoulders

Face perpendicularity or face runout can achieve 0.010 mm when defined by the drawing. Final applicability depends on clamping access, section stiffness, heat-treatment movement, and inspection method.

Quotation checklist

What should a machined forging RFQ include?

Provide enough information to review the blank, heat treatment, finishing route, and measurement plan together.

2D drawing and, when available, 3D model with revision level
Material grade, governing standard, delivery condition, and certification
Prototype quantity, lot quantity, and estimated annual demand
Heat treatment, hardness, case depth, and protected areas
Critical dimensions, datums, geometric tolerances, and roughness
Gear or spline standard, accuracy grade, measurement, and gauge requirements
Surface treatment, corrosion protection, cleaning, marking, and packaging
Inspection report, traceability, sample approval, and delivery requirements

FAQ

Machined forging quoting questions

What information should be included in a forging RFQ?

Send the released 2D drawing and available 3D model, revision, material and standard, prototype and annual quantity, heat treatment, critical datums and tolerances, tooth or spline requirements, surface treatment, inspection records, marking, packaging, and delivery target.

Can you support both hot-forged and cold-forged blank routes?

Both blank routes can be evaluated. Jinhua has verified in-house cold-forging and cold-extrusion capability. For hot-forged blanks, the responsible source and any special-process provider are confirmed during quotation. Selection depends on material, geometry, allowance, functional surfaces, heat treatment, quantity, and inspection.

Which forged parts can be machined?

Common drawing-based programs include shafts, gear blanks, hubs, sleeves, bushings, yokes, brackets, flanges, fastener-related parts, and other industrial components. Feasibility is reviewed for each geometry rather than inferred from a category name.

How are in-house and external processes identified?

The quotation and released process plan identify process ownership. If an approved external special process is required, its control, records, return inspection, and traceability are defined; it is not described as an in-house operation.

Can tight tolerances be achieved after heat treatment?

Yes, within the verified feature sizes and process ranges shown on this page and subject to drawing review. Material, geometry, heat-treatment distortion, datum access, stock allowance, quantity, and inspection method determine the final commitment.

What delivery stage should a machined forging quotation cover?

State the required delivery condition: a forged blank, a partly machined part, or a finished component. Ask for the included operations, blank source, any external steps, required records, and remaining work to be identified. Confirm the accepted supply scope during drawing review rather than assuming that blank-only and finished-part offers cover the same work.

How should as-forged and machined surfaces be distinguished?

Identify the surfaces that remain as-forged and those that require machining, together with the relevant datums, finish requirements, and any protected areas. Where the drawing leaves the boundary or clean-up allowance unclear, resolve it before tooling or production release. Do not assume that every surface will be machined or that an as-forged surface is assessed against finished-machining requirements.

What should buyers compare besides the unit price?

Compare offers against the same drawing revision, material and delivery condition, quantity, required finished features, treatment scope, inspection records, packaging, and delivery basis. Record exclusions and unresolved exceptions, and agree which checks apply at blank receipt, after treatment, and at final delivery. Price alone does not establish equivalent scope or part conformance.

Request a quote

Send forged part drawings for manufacturing review.

Use the Contact form to send project requirements; send drawings as email attachments. Include material, quantity, tolerance, heat treatment, finishing and application when available.
