CNC Turning-Milling for Drawing-Based Components
Review turned and milled features, datum relationships, setup transfer and inspection requirements with Jinhua drawing-based machining cases.
Turning and milling as a coordinated route
Components can combine rotational features with flats, transverse holes and other non-rotational geometry. Review the drawing as a set of functional relationships: what locates the part, what must be related, and which features need access in each operation.
A turning-milling route does not automatically mean every feature is completed in one machine or one clamping. The actual setup boundaries must follow the controlled manufacturing plan.
A documented shaft process example
The automotive steering input shaft case records a separate 040 deep-hole operation, a bounded 070 setup for datum-related internal finishing and associated left-end milling, and separate 080 completion at the other end using a unified angular reference. The route keeps these operations distinct.
Read the steering input shaft manufacturing case
The required bore, positional and phase relationships are drawing requirements; they are not additional measured PASS results. Selected inspection records remain limited to the dimensions actually mapped in the case.
Datum and setup review
- Identify the functional bore, journals, faces and angular references on the controlled revision.
- Separate deep-hole drilling from later internal finishing and associated milling.
- Define how references are established and transferred when the component is re-clamped.
- Agree the inspection scope and records for each critical relationship.
Manufacturing responsibility
In the referenced shaft case, machining is distinguished from externally supplied raw material and heat treatment. That case-specific responsibility does not establish the provider route for a new enquiry; confirm it during quotation.
Rotational and non-rotational features in one route
Turning generates rotational surfaces, while milling addresses features such as flats, slots and transverse geometry. A coordinated route plans the connection between those feature families, not merely the order of two process names.

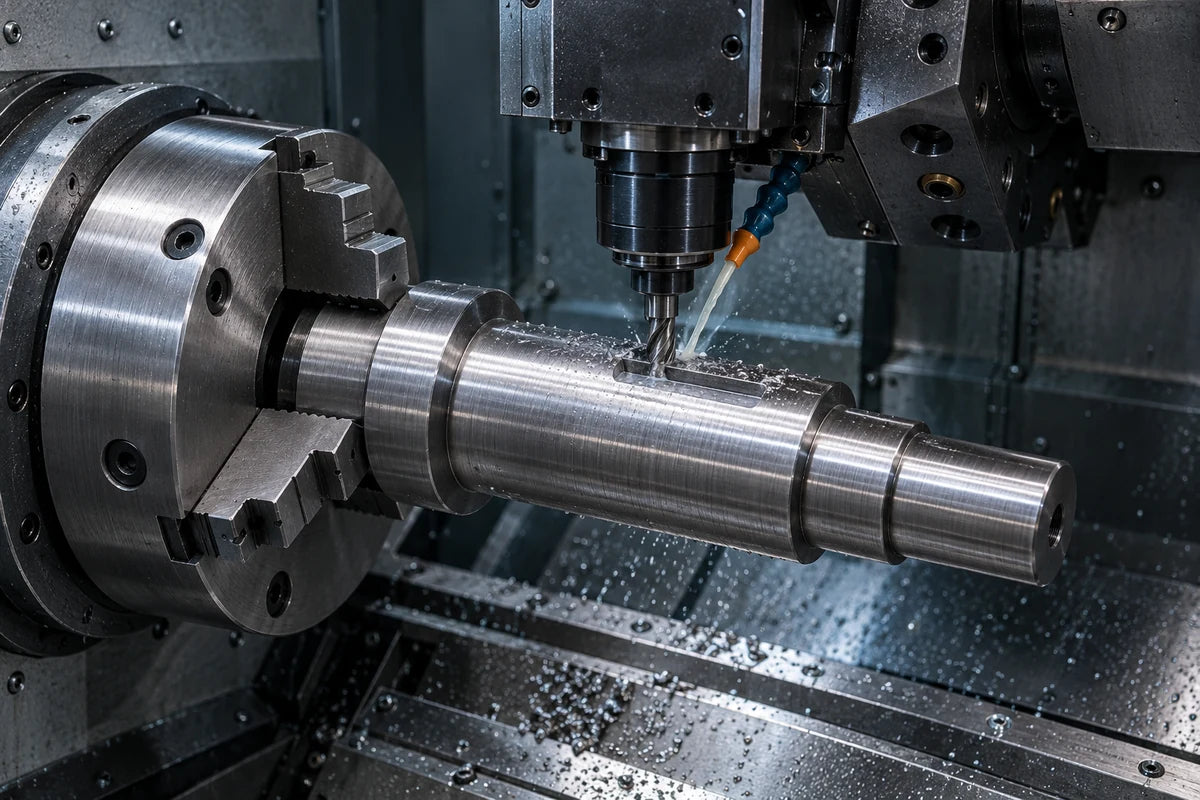

A suitably equipped turning center may use driven tools and controlled spindle orientation for milling. Separate turning and milling machines are another possible route. Neither method is assumed for a new component, and the page does not promise simultaneous machining or universal single-setup completion.
Plan the common references and re-clamping boundaries
Identify the features that establish the component axis, axial location and angular reference. Then assign each critical feature to the operation where it can be reached and located appropriately.
If a part moves between machines or is reversed, the plan should explain how the reference is recovered, how finished surfaces are protected and where transfer-related relationships are checked. A milled flat should not become an angular datum solely because it is convenient for clamping; use the controlled drawing and route.
Different cuts need different chip-control decisions
Turning can generate long chips, while milling produces interrupted cutting and discrete chips. Review each operation separately for material, engagement, coolant delivery and chip exit. Milling near a finished journal also raises surface-protection and burr-control questions.
Clean locating surfaces matter when the part is transferred to the next setup. The route should address trapped chips and burrs at intersecting holes or edges before they affect seating or inspection. The actual method is reviewed for the component rather than inferred from a process image.
Inspect the relationships across operations
The inspection discussion should cover the turned features, the milled features and their specified relationship. Identify which dimensions are ordinary size checks and which require an agreed datum alignment or geometric measurement.
Map each reported result to the feature, part revision and inspection record. A process sequence explains how the component is made; it cannot substitute for a missing positional or angular result. Where material supply, heat treatment or another process is external, retain that responsibility boundary in the route.
Process planning FAQ
Does turning-milling mean a single machine?
Not necessarily. It describes coordinated operations on the same component. A suitable route may use driven tools or separate machines, subject to drawing and setup review.
Does it mean both tools cut at the same time?
No. This page does not make a simultaneous-cutting claim. Operation sequence and spindle orientation depend on the approved route.
Which reference should control a milled flat?
Use the functional datum or angular reference specified for the component. Establishing and transferring that reference is a route-planning question.
Can the shaft case prove a new part will meet its tolerances?
No. The case provides a documented process example. New requirements need their own route and inspection review; selected case results remain case-specific.
Engineering and quotation questions
Is this a single-setup claim?
No. The documented case has separate operations and bounded setup relationships. A new component needs its own reviewed route.
Can inspection targets be treated as achieved results?
No. Drawing requirements and process planning are distinct from the recorded measurements. Only attributable inspection records support achieved-result wording.
Related CNC process routes
Send the drawing for a manufacturing review
Include material, revision, functional datums, starting form, quantity and inspection expectations. Scope and provider responsibilities are agreed for the actual component.
