This page documents a specific made-to-drawing external spline output shaft. It is not a standard off-the-shelf replacement product.

Explore Input and Output Shaft Manufacturing
External spline shaft output shaft made of medium-carbon alloy steel with cold-forged splines and induction heat treatment for high durability and precision

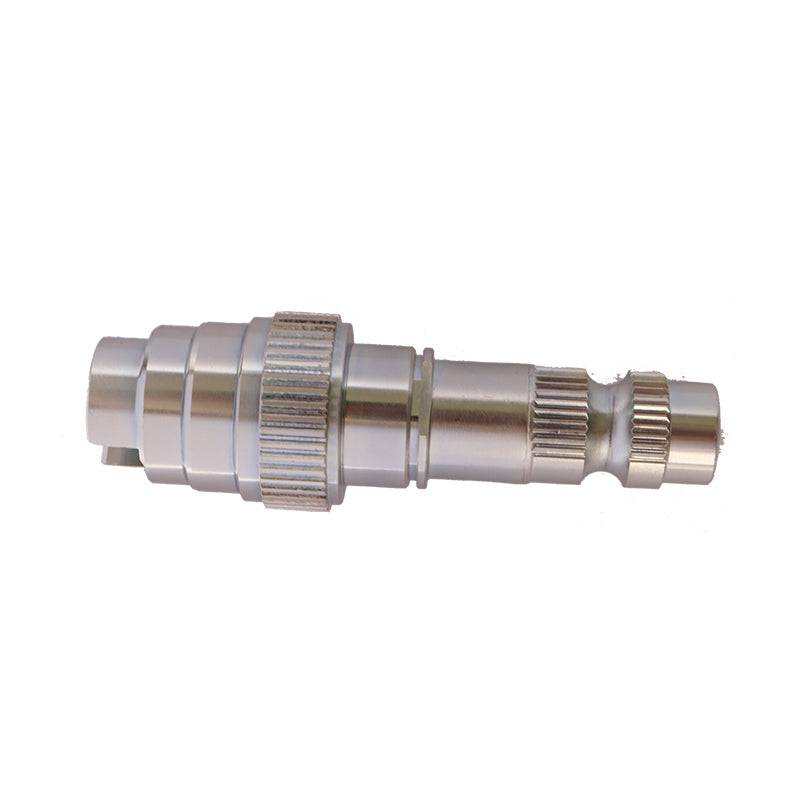

Output shaft made of medium-carbon alloy steel with cold forged spline and induction heat treatment to HRC50-55
Roll over or click image to zoom in
External spline shaft output shaft made of medium-carbon alloy steel with cold-forged splines and induction heat treatment for high durability and precision
Output shaft made of medium-carbon alloy steel with cold forged spline and induction heat treatment to HRC50-55

External Spline Output Shaft

Send your drawing, material, quantity, tolerance, heat treatment, surface finish, and delivery requirements for manufacturing review.

Request a Quote
Description

Manufacturing Case Overview

This case records one component manufactured to customer-approved requirements. The values below apply to this example only and are not universal specifications for new inquiries.

Manufacturer
Jinhua Machinery
Component category
External spline output shaft
Material
Medium-carbon alloy steel with stated tensile strength of 780–930 N/mm²
Manufacturing route
Cold-forged external spline with turning and milling
Heat treatment
Induction hardening to HRC 50–55
Verified drawing controls
Outer-diameter tolerance of 0.010 mm and inner-diameter tolerance of 0.008 mm for this component

New parts require independent review of the drawing, standard edition, datum system, material, heat treatment, quantity and inspection plan. Equivalent grades or accuracy numbers are not assumed to be interchangeable.

View Input and Output Shaft Manufacturing or request a manufacturing review.
