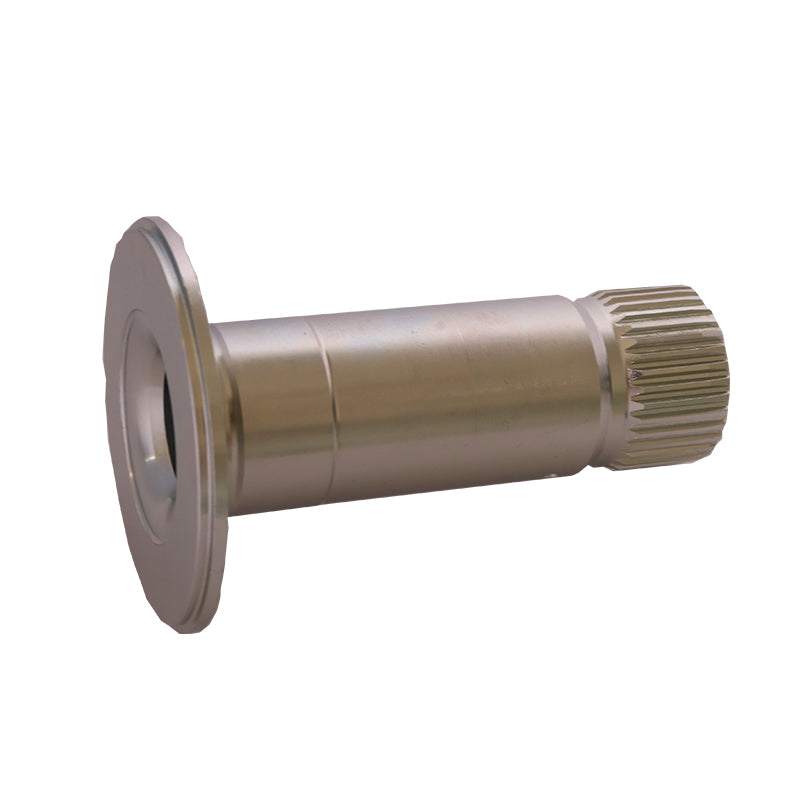

Induction-Hardened Input Shaft Manufacturing Case
Send your drawing, material, quantity, tolerance, heat treatment, surface finish, and delivery requirements for manufacturing review.
Manufacturing Case Overview
This case records one component manufactured to customer-approved requirements. The values below apply to this example only and are not universal specifications for new inquiries.
- Manufacturer
- Jinhua Machinery
- Component category
- Induction-hardened input shaft
- Material
- ZF34C alloy steel
- Manufacturing route
- Forged blank, spline hobbing, turning and grinding
- Heat treatment
- Selective induction hardening to HRC 50–55
- Verified drawing controls
- Ø62 mm outside diameter, 89 mm length, 0.020 mm outside-diameter tolerance, 0.013 mm inside-diameter tolerance and core strength of at least 500 N/mm²
New parts require independent review of the drawing, standard edition, datum system, material, heat treatment, quantity and inspection plan. Equivalent grades or accuracy numbers are not assumed to be interchangeable.
