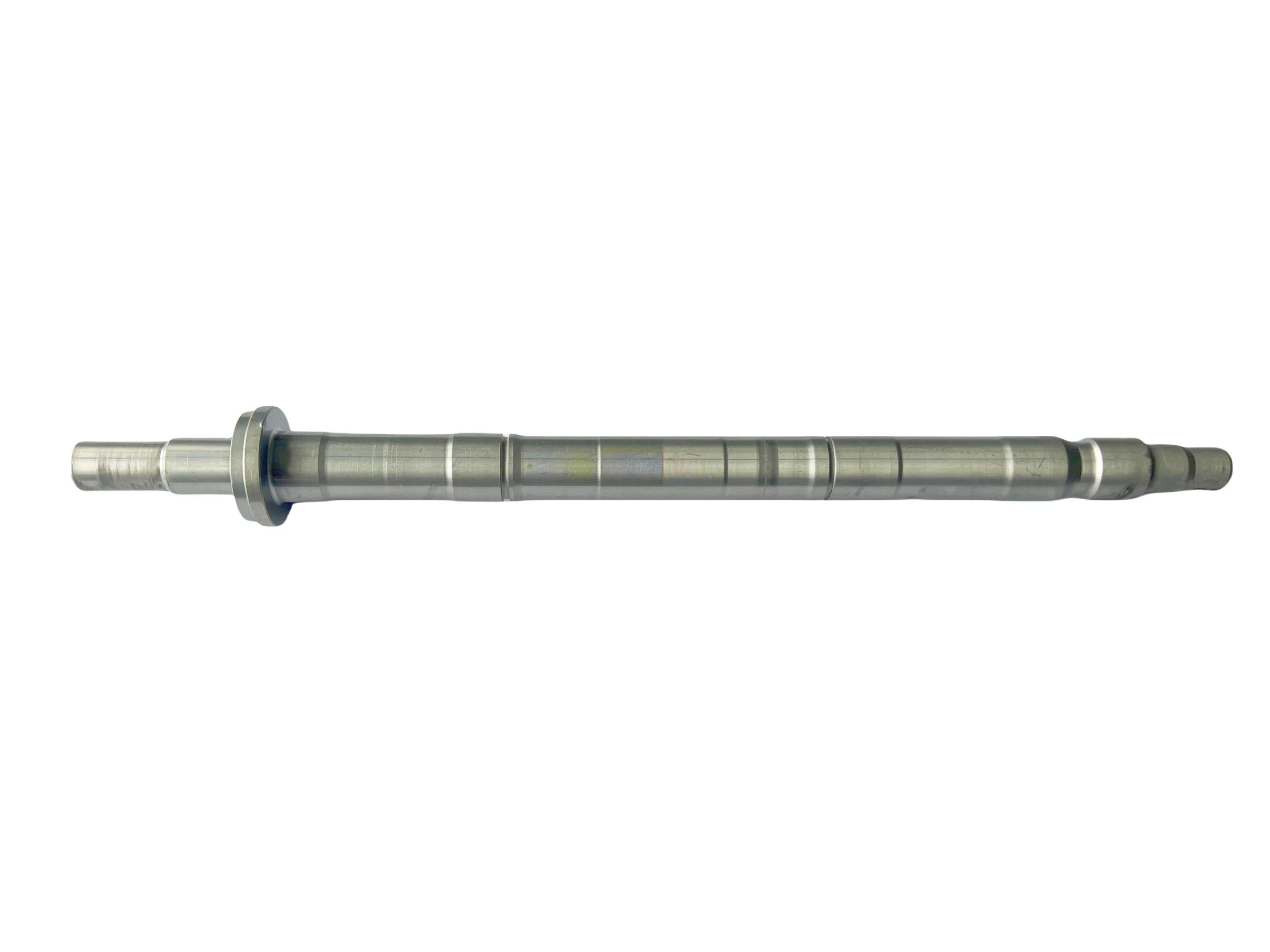

Heat-Treated Input Shaft Manufacturing Case
Send your drawing, material, quantity, tolerance, heat treatment, surface finish, and delivery requirements for manufacturing review.
Manufacturing Case Overview
This case records one component manufactured to customer-approved requirements. The values below apply to this example only and are not universal specifications for new inquiries.
- Manufacturer
- Jinhua Machinery
- Component category
- Heat-treated input shaft
- Material
- ZF34C alloy steel
- Manufacturing route
- Precision shaft machining with controlled internal-hole features
- Heat treatment
- Quench and temper to HB 228–263
- Verified drawing controls
- Ø34.2 mm outside diameter with ±0.020 mm stated tolerance, 333 mm total length and 7.2 mm internal diameter for this component
New parts require independent review of the drawing, standard edition, datum system, material, heat treatment, quantity and inspection plan. Equivalent grades or accuracy numbers are not assumed to be interchangeable.
View Input and Output Shaft Manufacturing or request a manufacturing review.
