Revising a CNC Process for an Internal Thread and Intersecting Side Hole
A recalled Jinhua project involving local thread deformation, assembly binding and a change in operation sequence.
Evidence note: This anonymized account is based on the Project Owner's recollection of a project around August–October 2023. Original manufacturing and inspection records are no longer available for independent review. No controlled drawing is supplied with this retrospective.
The recalled assembly problem

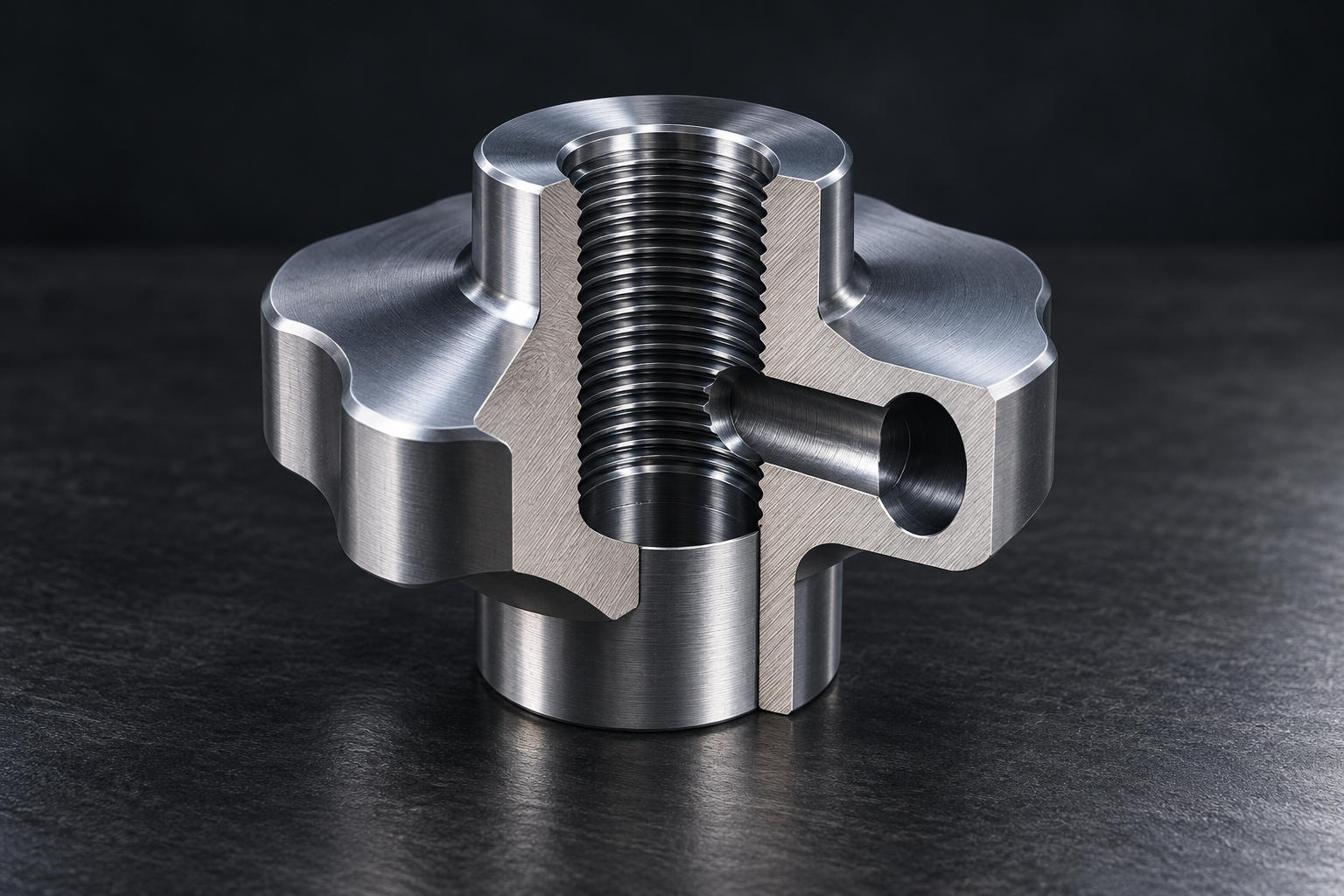

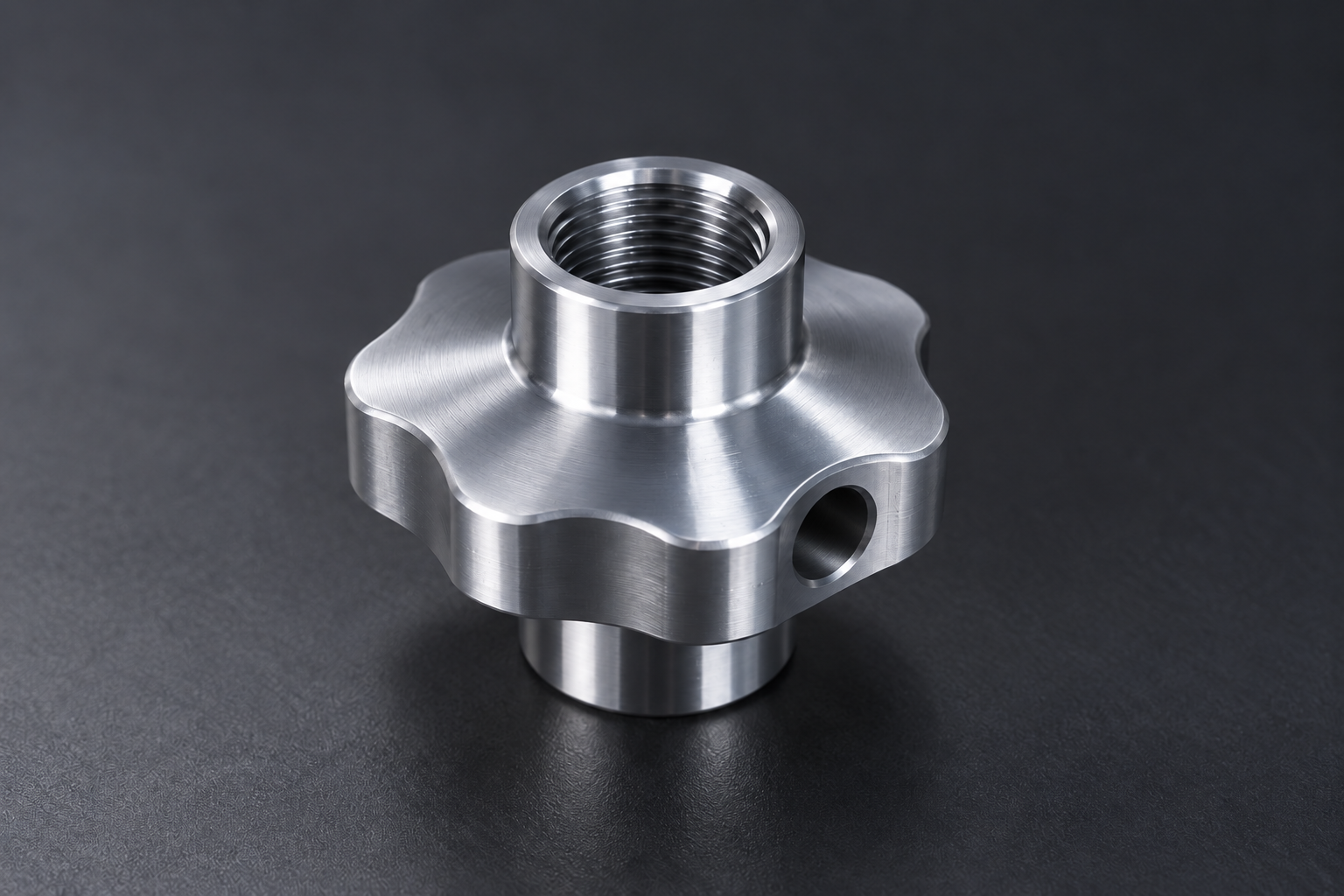

The part combined an axial internal thread with a drilled side hole that intersected the threaded region. According to the Project Owner, the original route finished the internal thread before drilling the side hole.
The Owner recalls local thread deformation near the intersection after drilling. The mating component encountered binding and, in some instances, could not screw in as intended.
The Owner attributes the interference to the local deformation. This is the historical explanation for the route change, not an independently established root-cause finding. The surviving account does not isolate the effects of drilling, the local edge condition or other manufacturing variables.
What changed in the manufacturing route
Recalled original sequence
- Finish the axial internal thread.
- Drill the intersecting side hole.
Recalled revised sequence
- Drill the side hole.
- Machine the internal thread.
- Manually polish the thread locally near the side-hole intersection.
The Project Owner confirms that these operations were performed internally. The revised route was used to manufacture the parts again, rather than repair the original batch.
The Owner recalls improved assembly function in the newly manufactured parts after these changes. That outcome remains an attributed recollection, not an independently verified inspection result. The available evidence does not establish which individual change contributed most to the improvement.
What a buyer can clarify on a similar drawing
The useful discussion concerns the interaction between intersecting features: which operation acts on an already finished threaded region, and how is the intersection subsequently finished?
- Identify where the side hole meets the threaded region and what mating function matters.
- Review the operation sequence and any local finishing at that intersection.
- Agree the acceptance method and the records required for the supplied parts.
This retrospective does not establish a universal rule to drill before threading. Another part needs its own route assessment against its geometry, material, thread requirements and acceptance criteria.
Historical process-review attribution
The Project Owner identifies He Zhou, Technical Manager, as having reviewed the improved process in August 2023. That historical attribution is owner-confirmed; the original sign-off has not been independently inspected. It is not a review date for this article.
Scope and limitations
This account omits identifying part details and unsupported numerical claims. It does not publish a material specification, thread size, cutting parameters, batch quantity or quantified commercial benefit. It does not establish a general manufacturing capability or a verified lot-conformance result.
This is a historical process discussion, not a fully documented validation case.
